Home>Products>Indoor Optical Cables>Self-Supporting Figure-8 Drop Indoor Cable for Access Network

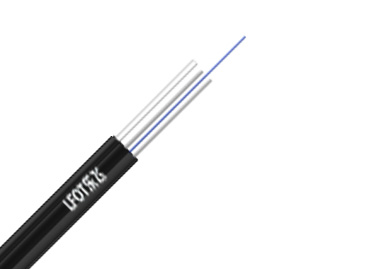

For the self-supporting figure-8 drop indoor access network cable, an optical communication unit is at the center, flanked by two parallel FRP (non-metallic strength members) and an extra steel wire strength member on the outside; finally, a black or colored LSZH sheath is extruded to form the cable.
Purchase link
- Product Features
- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber provides larger bandwidth and enhances network transmission performance.
Two parallel FRPs give the optical cable good compression resistance to protect the fiber.
A single additional steel wire strength member endows the optical cable with excellent tensile resistance.
The optical cable features simple structure, light weight and strong practicability.
Unique groove design enables easy stripping and convenient splicing, simplifying installation and maintenance.
Low-smoke zero-halogen (LSZH) flame-retardant sheath, environmentally friendly.
Structural Parameters
Cable model | Number of cores | Cable dimensions （mm） | Cable weight （kg/km） | Tensile load Long/Short term （N） | Crushing load Long/Short term （N/100mm） | Bending radius Dynamic/Static （mm） |
GJYXFCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 18 | 300/600 | 1000/2200 | 40/20 |
GJYXFCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 18 | 300/600 | 1000/2200 | 40/20 |
GJYXFCH-4Xn | 4 | (2.0±0.1)×(5.0±0.1) | 18 | 300/600 | 1000/2200 | 40/20 |
GJYXDFCH-4Xn | 4 | (2.0±0.2)×(6.0±0.2) | 21 | 300/600 | 1000/2200 | 40/20 |
Storage and Operating Temperature: -20℃ ~ +60℃。
Optical Characteristics
Fiber type | H Attenuation | OFL bandwidth | EMB | 10G Ethernet link length | Minimum bending radius | |||
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Maximum | Typical | Maximum | |||||
Units | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Ordering Information
GJYXFCH-OO
1 2 3
①Optical communication unit ②Number of fiber cores ③Fiber type
Non-fiber 1-4 B6a1=G.657A1 OM3=MaxBand?300
D-Fiber ribbon B6a2=G.657A2 OM4=MaxBand?550
Delivery Length
Recommended Length: 2000m; other lengths available upon customer request.
Leifei Optoelectronics'''' GJYXFCH optical cable complies with YD/T 1997.1-2014 and IEC 60794-1 standards.
