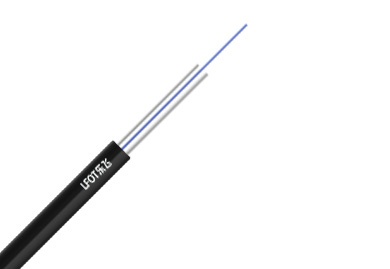

The butterfly-shaped indoor drop cable for access networks has the optical communication unit at the center, with two parallel non-metallic strength members (FRP) on both sides, and is finally sheathed with a black or colored low-smoke zero-halogen (LSZH) material to form the cable.
Purchase link
- Product Features

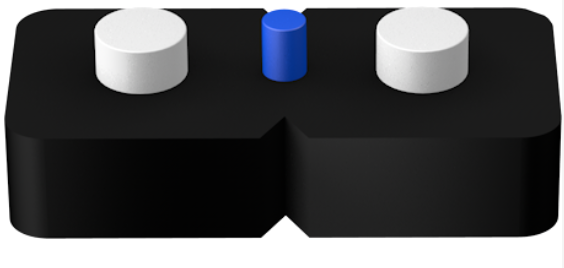

- Optical Cable Structure Diagram
- Product Standards
structural parameter
Cable model | Number of cores | Cable dimensions （mm） | Cable weight （kg/km） | Tensile load Long/Short term （N） | Crushing load Long/Short term （N/100mm） | Bending radius Dynamic/Static （mm） |
GJXH -1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXH -2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXH -4Xn | 4 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXDH -4Xn | 4 | (2.0±0.2)×(4.0±0.2) | 13 | 100/200 | 1000/2200 | 40/20 |
Storage and Operating Temperature: -20℃ ~ +60℃。
Optical Properties
Fiber type | Attenuation | OFL bandwidth | EMB | 10G Ethernet link length | Minimum bending radius | |||
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Maximum | Typical | Maximum | |||||
Units | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Delivery Length
Recommended Length: 2000m; other lengths available upon customer request.
GJXH Optical Fiber Cable from Lefei Optoelectronics Co., Ltd. complies with YD/T 1997.1-2014 and IEC 60794-1 standards.
