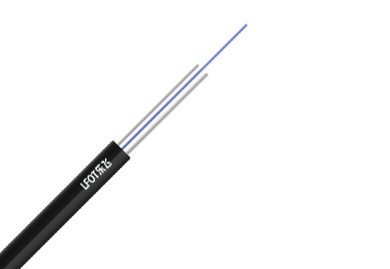

The butterfly drop indoor cable for access network has the optical communication unit placed at the center, with two parallel metal strength members arranged on both sides, and finally, a black or colored PVC sheath is extruded to form the cable.
Purchase link
- Product Features

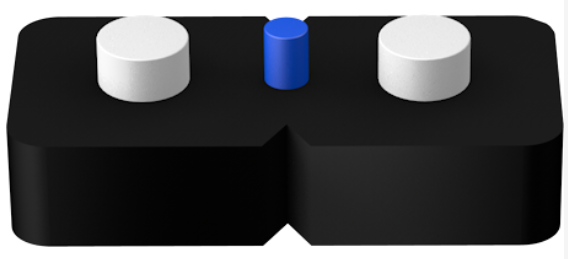

- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber provides larger bandwidth and enhances network transmission performance.
Two parallel metal strength members endow the optical cable with good compression resistance to protect the optical fiber.
The optical cable features a simple structure, light weight and strong practicality.
The unique groove design enables easy stripping and splicing, simplifying installation and maintenance.
structural parameter
Cable model | Number of cores | Cable dimensions （mm） | Cable weight （kg/km） | Tensile load Long/Short term （N） | Crushing load Long/Short term （N/100mm） | Bending radius Dynamic/Static （mm） |
GJXV -1Xn | 1 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXV -2Xn | 2 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXV -4Xn | 4 | (2.0±0.1)×(3.0±0.1) | 10 | 100/200 | 1000/2200 | 40/20 |
GJXDV -4Xn | 4 | (2.0±0.2)×(4.0±0.2) | 13 | 100/200 | 1000/2200 | 40/20 |
Storage and Operating Temperature: -20℃ ~ +60℃
Optical Properties
Fiber type | HAttenuation | OFL bandwidth | EMB | 10G Ethernet link length | Minimum bending radius | |||
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Maximum | Typical | Maximum | |||||
Units | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Ordering Information
GJXFV-OO
1 2 3
①Optical communication unit ②Number of fiber cores ③Fiber type
Non-fiber 1-4 B6a1=G.657A1 OM3=MaxBand?300
D-Fiber ribbon B6a2=G.657A2 OM4=MaxBand?550
Delivery Length
Recommended length: 2000m; other lengths options are available upon customer request.
GJXV Optical Fiber Cable of Lefei Optoelectronics Co., Ltd. complies with the standards of YD/T 1997.1-2014 and IEC 60794-1.
