Home>Products>Indoor Optical Cables>Self-Supporting Figure-8 Drop Indoor Cable for Access Network

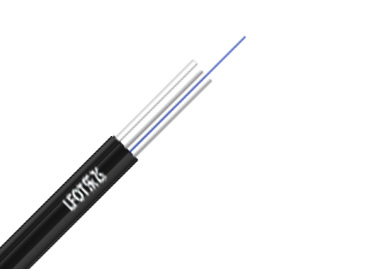

The self-supporting figure-8 drop indoor access network cable has an optical communication unit at its center, with two parallel metallic strength members on both sides and an extra steel wire strength member outside. Finally, a black or colored LSZH sheath is extruded to form the cable.
Purchase link
- Product Features
- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber offers larger bandwidth and enhances network transmission performance.
Two parallel metallic strength members give the cable good compression resistance to protect the fiber.
A single additional steel wire strength member ensures excellent tensile resistance.
Simple structure, light weight and high practicality.
Unique groove design for easy stripping and splicing, simplifying installation and maintenance.
LSZH flame-retardant sheath, environmentally friendly.
Structural Parameters
Cable model | Number of cores | Cable dimensions （mm） | Cable weight （kg/km） | Tensile load Long/Short term （N） | Crushing load Long/Short term （N/100mm） | Bending radius Dynamic/Static （mm） |
GJYXCH-1Xn | 1 | (2.0±0.1)×(5.0±0.1) | 21 | 300/600 | 1000/2200 | 40/20 |
GJYXCH-2Xn | 2 | (2.0±0.1)×(5.0±0.1) | 21 | 300/600 | 1000/2200 | 40/20 |
GJYXCH-4Xn | 4 | (2.0±0.1)×(5.0±0.1) | 21 | 300/600 | 1000/2200 | 40/20 |
GJYXDCH-4Xn | 4 | (2.0±0.2)×(6.0±0.2) | 24 | 300/600 | 1000/2200 | 40/20 |
Storage and Operating Temperature: -20℃ ~ +60℃
Optical Characteristics
Fiber type | HAttenuation | OFL bandwidth | EMB | 10G Ethernet link length | Minimum bending radius | |||
Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Maximum | Typical | Maximum | |||||
Units | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Ordering Information
GJYXCH-OO
1 2 3
①Optical communication unit ②Number of fiber cores ③Fiber type
Non-fiber 1-4 B6a1=G.657A1 OM3=MaxBand?300
D-Fiber ribbon B6a2=G.657A2 OM4=MaxBand?550
Delivery Length
Recommended Length: 2000m; other lengths can be provided as per customer requirements.
Leifei Optoelectronics'''' GJYXCH optical cable complies with the standards of YD/T 1997.1-2014 and IEC 60794-1.
