Figure-8 Drop Indoor Cable for Access Network

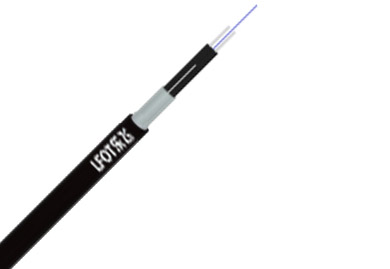

The optical communication unit is placed at the center, with two parallel metal strength members on both sides, oversheathed with black low-smoke zero-halogen (LSZH) material. It is then wrapped with an aluminum tape moisture barrier, and finally sheathed with PE (polyethylene) to form the cable.

Purchase link

Product Features

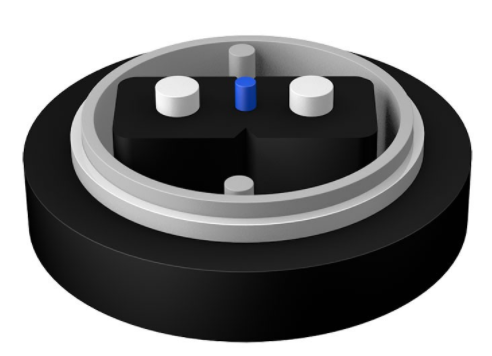

Optical Cable Structure Diagram
Product Standards

· Bend-resistant fiber, provides higher bandwidth and enhances network performance

· Two parallel metallic strength members for good crush resistance and fiber protection

· Simple structure, lightweight, highly practical

· Unique groove design, easy to strip and splice, simplifies installation and maintenance

· LSZH flame-retardant sheath, environmentally friendly

· PE outer sheath with excellent UV resistance

· APL (Aluminum-Plastic Laminate) moisture barrier

Structural Parameters

Cable Model

Fiber Count

Cable Size (mm)

Weight (kg/km)

Tensile Strength L/S (N)

Crush Strength L/S (N/100mm)

Bend Radius Dynamic/Static (mm)

Storage & Operating Temp: -20℃ ~ +60℃

Optical Characteristics

Fiber Type	Attenuation				Overfilled BW	Effective Mode BW	10G Link Length	Min Bend Radius
Condition	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
	Typical	Max	Typical	Max
Unit	dB/km	dB/km	dB/km	dB/km	MHz·km	MHz·km	m	mm

Ordering Info

GJYXHA-OO

① Optical Unit ② Fiber Count ③ Fiber Type

None – Fiber 1–4 B6a1=G.657A1 OM3=MaxBand 300

D – Fiber Ribbon B6a2=G.657A2 OM4=MaxBand 550

Delivery Length

Recommended: 2000m; other lengths available upon request.


Lefei Optoelectronics'''''''''''''''' GJYXHA Optical Cable Complies with YD/T 1997.1-2014 and IEC 60794-1 StandardS
