Figure-8 Drop Indoor Cable for Access Network The optical communication unit is centered, with two parallel metal strength members on both sides, oversheathed with black low-smoke zero-halogen (LSZH) material. After wrapping a water-blocking tape layer around it, a PE (polyethylene) sheath is extruded to form the cable.
Purchase link
- Product Features

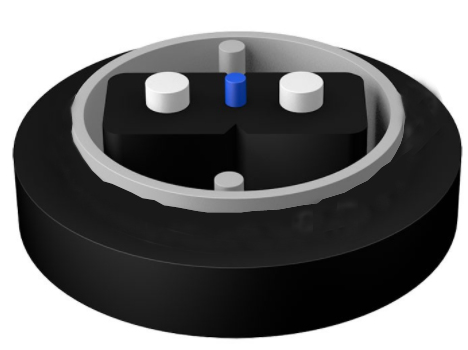

- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber: provides larger bandwidth and enhances network transmission performance
Two parallel metal strength members: give the optical cable good pressure resistance to protect the optical fiber
The optical cable features simple structure, light weight and high practicality
Unique groove design: easy to strip, convenient for splicing, and simplifies installation and maintenance
Low-smoke zero-halogen (LSZH) flame-retardant sheath: environmentally friendly
PE outer sheath: offers excellent UV resistance
Structural Parameters
Cable Model | Fiber Count | Cable Size (mm) | Approx. Weight (kg/km) | Tensile Strength Long/Short (N) | Crush Resistance Long/Short (N/100mm) | Bending Radius Dynamic/Static (mm) |
Storage and Operating Temperature: -20℃ ~ +60℃
Optical Characteristics
Fiber Type | Attenuation | Overfilled Bandwidth | Effective Mode Bandwidth | 10G Ethernet Link Length | Min. Bend Radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Max | Typical | Max | |||||
Unit | dB/km | dB/km | dB/km | dB/km | MHz·km | MHz·km | m | mm |
Order Information
Cable Code Example: GJYXH03-OO
① Optical Unit ② Fiber Count ③ Fiber Type
No – Fiber 1–4 B6a1=G.657A1 OM3=MaxBand 300
D – Fiber Ribbon B6a2=G.657A2 OM4=MaxBand 550
Delivery Length
Recommended: 2000m; other lengths available upon request.
Lefei Optoelectronics'''' GJYXH03 Optical Cable complies with YD/T 1997.1-2014 and IEC 60794-1 standards.
