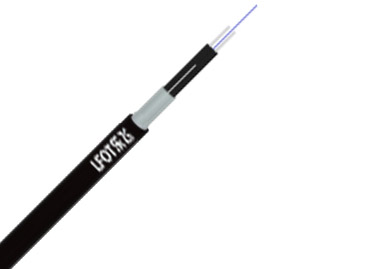

Figure-8 Drop Indoor Cable for Access Network
The optical communication unit is placed at the center, with two parallel non-metallic strength members (FRP) on both sides, and a black low-smoke zero-halogen (LSZH) sheath is extruded around them. After wrapping an aluminum tape moisture-proof layer outside, a PE (polyethylene) sheath is finally extruded to form the cable.
- Product Features
- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber: provides larger bandwidth and enhances network transmission performance
Two parallel FRP (Fiberglass Reinforced Plastic) members: endow the optical cable with good pressure resistance to protect the optical fiber
The optical cable has a simple structure, light weight and high practicality
Unique groove design: easy to strip, convenient for splicing, and simplifies installation and maintenance
Low-smoke zero-halogen (LSZH) flame-retardant sheath: environmentally friendly
PE (polyethylene) outer sheath: has excellent UV resistance
Plastic-coated aluminum tape (APL) moisture-proof layer
Structural Parameters
Cable Mode | Fiber Count | Cable Size （mm） | Weight （kg/km） | Tensile Strength Long/Short （N） | Crush Strength Long/Short （N/100mm） | Bend Radius Dynamic/Static （mm） |
GJYXFHA-1Xn | 1 | 6.8 | 41 | 300/600 | 1000/2200 | 20D/10D |
GJYXFHA-2Xn | 2 | 6.8 | 41 | 300/600 | 1000/2200 | 20D/10D |
GJYXFHA-4Xn | 4 | 6.8 | 41 | 300/600 | 1000/2200 | 20D/10D |
GJYXFDHA-4Xn | 4 | 7.1 | 46 | 300/600 | 1000/2200 | 20D/10D |
Note: Operating Temp: -20℃ ~ +60℃
Optical Characteristics
Fiber Type | H Loss | Full Injection BW | Effective Mode BW | 10G Ethernet Link Length | Min Bend Radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical | Max | Typical | Max | |||||
单位 | dB/km | dB/km | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
G657A1 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 10 |
G657A2 | 0.36/0.22 | 0.5/0.4 | --- | --- | --- | --- | --- | 7.5 |
OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 | ≥2000 | ≤300 | 30 |
OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 | ≥4700 | ≤550 | 30 |
Ordering Info
GJYXFHA-OO
1 2 3
①Optical Communication Unit ②Fiber Count ③Fiber Type
None – Fiber 1-4 B6a1=G.657A1 OM3=MaxBand?300
D – Fiber Ribbon B6a2=G.657A2 OM4=MaxBand?550
Delivery Length
Recommended: 2000 m; other lengths available upon customer request.
Lefei Optoelectronics GJYXFHA optical cable complies with YD/T 1997.1-2014 and IEC 60794-1 standards.
