The figure-8 drop indoor cable for access network features an optical communication unit positioned at its center, with two parallel non-metallic strength members (FRP) placed on either side. A black low-smoke zero-halogen (LSZH) sheath is extruded around these components. Subsequently, a water-blocking tape is wrapped around the assembly, followed by the extrusion of a PE (polyethylene) sheath to form the complete cable.
Purchase link
- Product Features

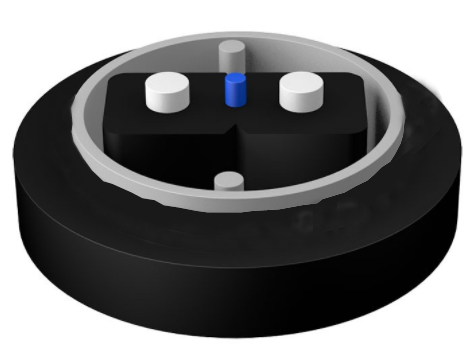

- Optical Cable Structure Diagram
- Product Standards
Special bend-resistant optical fiber provides larger bandwidth and enhances network transmission performance.
Two parallel FRPs endow the optical cable with excellent compression resistance to protect the optical fiber.
The optical cable has a simple structure, light weight and strong practicability.
Unique groove design enables easy stripping and convenient splicing, simplifying installation and maintenance.
Low-smoke zero-halogen (LSZH) flame-retardant sheath, which is environmentally friendly.
PE outer sheath has excellent ultraviolet (UV) resistance.
Structural Parameters
Cable Model | Fiber Count | Cable Size （mm） | Cable Reference Weight （kg/km） | Allowable Tensile Strength Long/Short （N） | Allowable Crushing Strength Long/Short （N/100mm） | Bending Radius Dynamic/Static （mm） |
GJYXFH03-1Xn | 1 | 6.0 | 30 | 300/600 | 1000/2200 | 20D/10D |
GJYXFH03-2Xn | 2 | 6.0 | 30 | 300/600 | 1000/2200 | 20D/10D |
GJYXFH03-4Xn | 4 | 6.0 | 30 | 300/600 | 1000/2200 | 20D/10D |
GJYXFDH03-4Xn | 4 | 6.7 | 36 | 300/600 | 1000/2200 | 20D/10D |
Storage and Operating Temperature: -20℃ ~ +60℃
Optical Characteristics
Fiber Type | H Loss | Full Injection Bandwidth | Effective Mode Bandwidth | 10G Ethernet Link Length | Minimum Bend Radius | |||
Condition | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | / | ||
Typical Value | Max Value | Typical Value | Max Value | |||||
Ordering Information
GJYXFH03-OO
1 2 3
① Optical unit ② Fiber count ③Fiber type
Non-fiber 1-4 B6a1=G.657A1 OM3=MaxBand?300
D-Fiber ribbon B6a2=G.657A2 OM4=MaxBand?550
Delivery Length
Recommended Length: 2000m; Other lengths can be provided as per customer requirements.
Leifei Optoelectronics Company''''''''''''''''s GJYXFH03 optical cable complies with the standards of YD/T 1997.1-2014 and IEC 60794-1.
