Home>Products>Outdoor Optical Cables>Lightweight armored fiber ribbon optical cable.

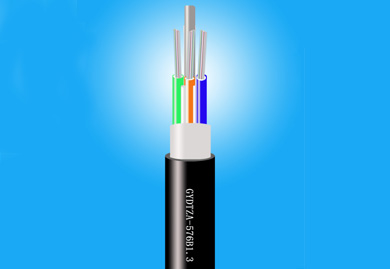

The GYDTZA optical cable is constructed by embedding fiber ribbons into loose tubes made of high-modulus material, filled with a water-blocking compound. The core center contains a metallic strength member. For certain fiber counts, an additional polyethylene (PE) layer is extruded over the metallic strength member. The loose tubes (and filler rods, if applicable) are stranded around the central strength member to form a compact circular cable core, with gaps filled with water-blocking material. A plastic-coated aluminum tape (APL) is longitudinally applied before extruding a flame-retardant outer sheath to complete the cable.
Purchase link
- Product Features

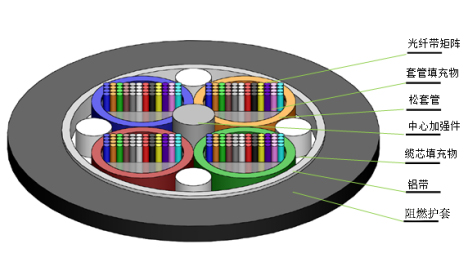

- Optical Cable Structure Diagram
- Product Standards
Excellent mechanical and thermal properties
High hydrolysis resistance and strength of the loose tube material
Specialized filling compound provides critical fiber protection
Flame-retardant sheath offers excellent fire resistance
Flexible application with Yuefei Optoelectronics'''' 4, 6, 8, or 12-core fiber ribbons
Waterproof performance ensured through:
· Single steel wire central strength member
· Special water-blocking compound in loose tubes
· Fully filled cable core
· Plastic-coated aluminum tape (APL) moisture barrier
· Effective water-blocking materials preventing longitudinal water penetration

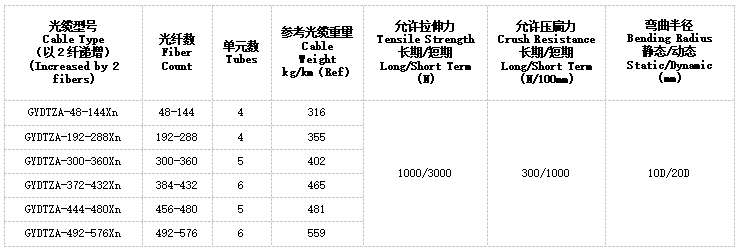

Structural Parameters

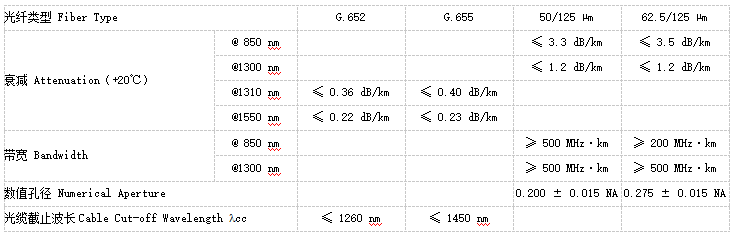

Optical Characteristics
Application: Duct, Aerial
Storage/Operating Temperature: -40℃ to +70℃
Yuefei Optoelectronics'''' GYDTZA optical cable complies with YD/T 981.3 and IEC 60794-1 standards.
