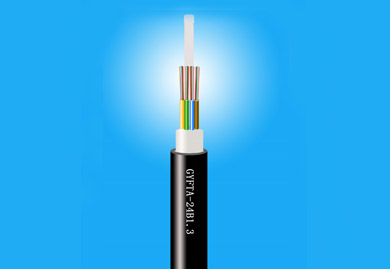

The GYFTA optical cable is constructed by placing single-mode or multi-mode fibers into loose tubes made of high-modulus polyester material, filled with a water-blocking compound. The core center consists of a non-metallic strength member. For certain fiber counts, an additional polyethylene (PE) layer is extruded over this member. The loose tubes (and filler rods, if any) are stranded around the central strength member to form a compact circular core. Gaps within the core are filled with water-blocking material. A plastic-coated aluminum tape (APL) is longitudinally applied before extruding a polyethylene
Purchase link
- Product Features

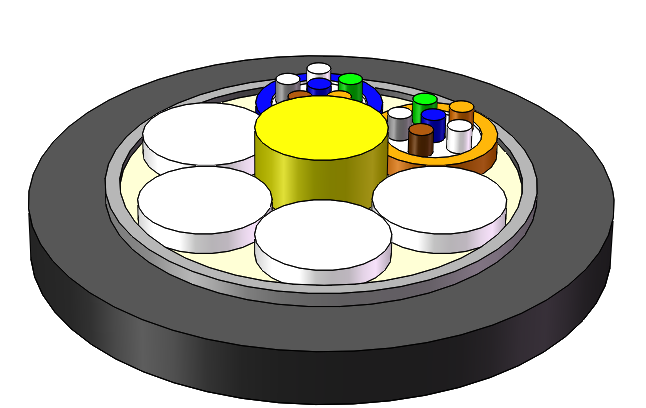

- Optical Cable Structure Diagram
- Product Standards
Precisely controlled fiber excess length ensures excellent mechanical and temperature performance.
The loose tube material itself exhibits high hydrolysis resistance and strength.
Specialized filling compound provides critical protection for the fibers.
High lateral crush resistance and flexibility.
Low-smoke zero-halogen (LSZH) sheath offers excellent flame retardancy.
Fully dielectric cable. Requires no grounding and is immune to lightning strikes.
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYFTA-2-36Xn | 2-36 | 6 | 82 | 600/1000 | 300/1000 | 10D/20D |
GYFTA-38-72Xn | 38-72 | 6 | 85 | |||
GYFTA-74-96Xn | 74-96 | 8 | 116 | |||
GYFTA-98-120Xn | 98-120 | 10 | 137 | |||
GYFTA-122-144Xn | 122-144 | 12 | 163 | |||
GYFTA-2-42Xn | 2-42 | 7 | 93 | 600/1500 | ||
GYFTA-44-84Xn | 44-84 | 7 | 96 | |||
GYFTA-86-96Xn | 86-96 | 8 | 119 | |||
GYFTA-98-120Xn | 98-120 | 10 | 140 | |||
GYFTA-122-144Xn | 122-144 | 12 | 165 | |||
GYFTA-2-48Xn | 2-48 | 8 | 114 | 1000/3000 | ||
GYFTA-50-96Xn | 50-96 | 8 | 121 | |||
GYFTA-98-120Xn | 98-120 | 10 | 145 | |||
GYFTA-122-144Xn | 122-144 | 12 | 171 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Duct, Aerial
Storage/Operating Temperature: -40℃ to +70℃
Yuefei Optoelectronics'''' GYFTA optical cable complies with YD/T 901 and IEC 60794-1 standards.
