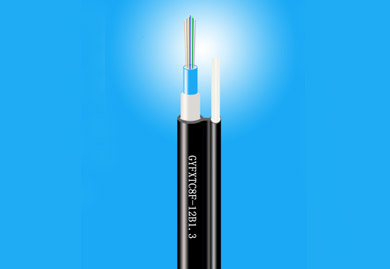

Central Tube Figure-8 Self-Supporting Aerial Cable (ADSS)

GYFXTC8F

The GYFXTC8F optical cable structure involves placing 250μm optical fibers into a loose tube made of high-modulus material, with the tube filled with waterproof compound. The loose tube is longitudinally wrapped with a layer of non-metallic tape, then integrated with a non-metallic reinforcement member into a figure-8 polyethylene sheath.

Purchase link

Product Features

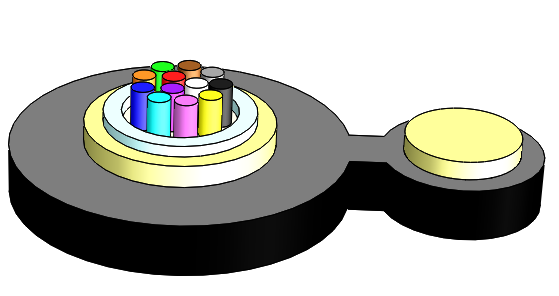

Optical Cable Structure Diagram
Product Standards

1. Excellent mechanical and temperature characteristics
2. High hydrolysis resistance and superior strength of the loose tube material
3. Critical fiber protection provided by specialized thixotropic gel filling
4. Non-metallic structure for lightning protection
5. The following measures ensure water resistance:
?· Single non-metallic central strength member
?· Loose tubes filled with specialized waterproof compound
?· Complete cable core filling

Structural Parameters

光缆型号

Cable Type

（以2纤递增）

(Increased by 2 fibers)

光纤数

Fiber Count

单元数

Tubes

参考光缆重量

Cable

Weight

kg/km（Ref）

允许拉伸力

Tensile Strength

长期/短期

Long/Short Term

(N)

允许压扁力

Crush Resistance

长期/短期

Long/Short Term

(N/100mm)

弯曲半径

Bending Radius

静态/动态

Static/Dynamic

(mm)

GYFXTC8F-2-12Xn

2-12

750/1500

300/1000

10D/20D

Optical Characteristics

光纤类型 Fiber Type		G.652	G.655	50/125 μm	62.5/125 μm
衰减 Attenuation（+20℃）	@ 850 nm			≤ 3.3 dB/km	≤ 3.5 dB/km
	@1300 nm			≤ 1.2 dB/km	≤ 1.2 dB/km
	@1310 nm	≤ 0.36 dB/km	≤ 0.40 dB/km
	@1550 nm	≤ 0.22 dB/km	≤ 0.23 dB/km
带宽 Bandwidth	@ 850 nm			≥ 500 MHz·km	≥ 200 MHz·km
带宽 Bandwidth	@1300 nm			≥ 500 MHz·km	≥ 500 MHz·km
数值孔径 Numerical Aperture				0.200 ± 0.015 NA	0.275 ± 0.015 NA
光缆截止波长Cable Cut-off Wavelength lcc		≤ 1260 nm	≤ 1450 nm

Application: Self-Supporting Aerial
Storage and Operating Temperature: -40℃ to +70℃


The GYFXTC8F optical cable from LeFei Optoelectronic Co., Ltd. complies with YD/T 1155 and IEC 60794-1 standards.
