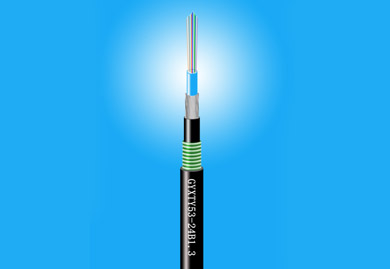

The GYXTY53 optical cable structure involves placing single-mode or multimode optical fibers into a loose tube made of high-modulus polyester material, with the tube filled with waterproof compound. The loose tube is wrapped with water-blocking material to ensure longitudinal water resistance. After the application of helically wrapped steel wire armor, an inner polyethylene sheath is extruded. A double-sided chrome-plated plastic-coated steel tape (PSP) is then longitudinally applied over the inner polyethylene sheath, followed
- Product Features

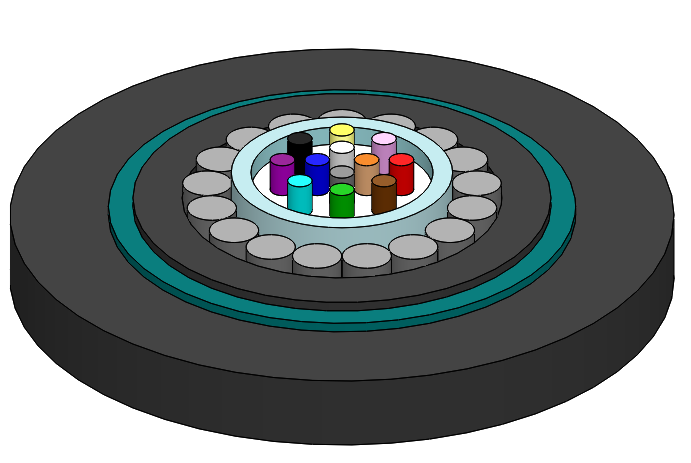

- Optical Cable Structure Diagram
- Product Standards
1. Precisely controlled fiber excess length ensures excellent mechanical and temperature performance.
2. The loose tube material itself exhibits high hydrolysis resistance and superior strength.
3. Filled with specialized thixotropic gel, providing critical protection to the fibers.
4. Good lateral crush resistance and flexibility.
5. A layer of helically applied steel wire armor ensures tensile strength.
6. Double-sided chrome-plated plastic-coated steel tape (PSP) enhances moisture penetration resistance.
7. Effective water-blocking materials prevent longitudinal water seepage.
8. The polyethylene (PE) sheath offers excellent UV radiation resistance.
9. Small diameter and light weight facilitate easy installation.
10. Steel wire and steel tape armor provide excellent rodent resistance.
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYXTY53-2~12Xn | 2~12 | 10.0 | 1000/3000 | 1000/3000 | 12.5D/25D |
GYXTY53-14~24Xn | 14~24 | 10.8 | |||
GYXTY53-26~36Xn | 26~36 | 11.2 | |||
GYXTY53-38~48Xn | 38~48 | 12.1 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Self-Supporting Aerial
Storage and Operating Temperature: -40℃ to +70℃
The GYXTY53 optical cable from LeFei Optoelectronic Co., Ltd. complies with YD/T 769 and IEC 60794-1 standards.
