Home>Products>Special Optical Cable>Central Tube Aluminum Armored Rodent-Resistant Optical Cable
1. Precisely controlled fiber excess length ensures excellent mechanical and temperature performance.
2. The loose tube material itself exhibits high hydrolysis resistance and superior strength.
3. Filled with specialized thixotropic gel, providing critical protection to the fibers.
4. Good lateral crush resistance and flexibility.
5. A layer of helically applied steel wire armor ensures tensile strength and provides effective rodent resistance.
6. Plastic-coated aluminum tape (APL) moisture barrier.
7. Effective water-blocking materials prevent longitudinal water seepage.
8. The polyethylene (PE) sheath offers excellent UV radiation resistance.
9. Small diameter facilitates easy installation.
- Product Features

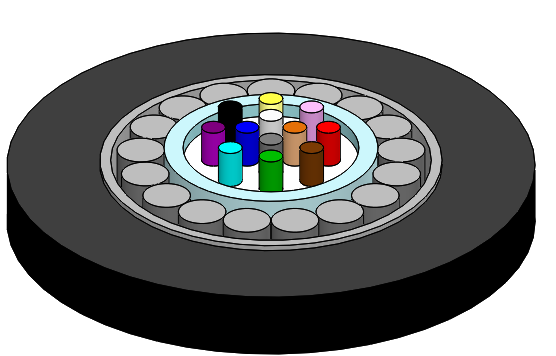

- Optical Cable Structure Diagram
- Product Standards
1. Precisely controlled fiber excess length ensures excellent mechanical and temperature performance.
2. The loose tube material itself exhibits high hydrolysis resistance and superior strength.
3. Filled with specialized thixotropic gel, providing critical protection to the fibers.
4. Good lateral crush resistance and flexibility.
5. A layer of helically applied steel wire armor ensures tensile strength and provides effective rodent resistance.
6. Plastic-coated aluminum tape (APL) moisture barrier.
7. Effective water-blocking materials prevent longitudinal water seepage.
8. The polyethylene (PE) sheath offers excellent UV radiation resistance.
9. Small diameter facilitates easy installation.
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYXTA-2-12Xn | 2-12 | 1 | 90 | 600/1500 | 300/1000 | 10D/20D |
GYXTA-14-24Xn | 14-24 | 1 | 97 | |||
GYXTA-26-36Xn | 26-36 | 1 | 99 | |||
GYXTA-38-48Xn | 38-48 | 1 | 113 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Duct, Aerial
Storage and Operating Temperature: -40℃ to +70℃
The GYXTA optical cable from LeFei Optoelectronic Co., Ltd. complies with YD/T 769 and IEC 60794-1 standards.
