The GYTZA optical cable is constructed by embedding fiber ribbons into loose tubes made of high-modulus material, filled with a water-blocking compound. The core center contains a metallic strength member. For certain fiber counts, a low-smoke zero-halogen (LSZH) polyethylene sheath is extruded over the metallic strength member. The loose tubes (and filler rods, if applicable) are stranded around the central strength member to form a compact circular cable core, with gaps filled with water-blocking material. A plastic-coated aluminum tape (APL) is longitudinally applied before extruding a flame-retardant outer sheath to complete the cable.
Purchase link
- Product Features

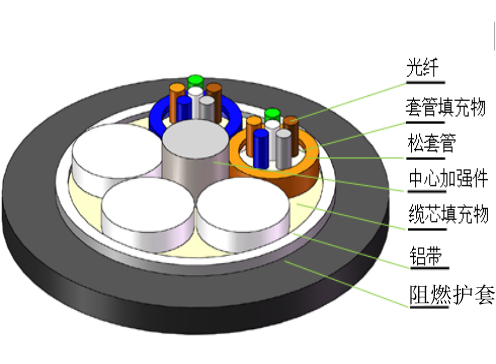

- Optical Cable Structure Diagram
- Product Standards
Excellent mechanical and thermal properties
High hydrolysis resistance and strength of the loose tube material
Specialized filling compound provides critical fiber protection
Flame-retardant sheath offers excellent fire resistance
Waterproof performance ensured through:
· Single steel wire central strength member
· Special water-blocking compound in loose tubes
· Fully filled cable core
· Plastic-coated aluminum tape (APL) moisture barrier
· Effective water-blocking materials preventing longitudinal water penetration
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYTZA-2-30Xn | 2-30 | 5 | 91.00 | 600/1500 | 300/1000 | 12.5D/25D |
GYTZA-32-36Xn | 32-36 | 6 | 103.00 | |||
GYTZA-38-60Xn | 38-60 | 5 | 106.00 | |||
GYTZA-62-72Xn | 62-72 | 6 | 120.00 | |||
GYTZA-74-96Xn | 74-96 | 8 | 155.00 | |||
GYTZA-98-120Xn | 98-120 | 10 | 185.00 | |||
GYTZA-122-144Xn | 122-144 | 12 | 210.00 | |||
GYTZA-146-216Xn | 146-216 | 18 | 218.00 | |||
GYTZA-218-240Xn | 218-240 | 20 | 230.00 | |||
GYTZA-242-288Xn | 242-288 | 24 | 265.00 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Duct, Aerial
Storage/Operating Temperature: -40℃ to +70℃
Yuefei Optoelectronics'''' GYTZA optical cable complies with YD/T 901 and IEC 60794-1 standards.
