The GYTA33 optical cable is constructed by embedding 250μm optical fibers into a loose tube made of high-modulus material, filled with a water-blocking compound. The core center contains a metallic strength member. The loose tubes (and filler rods, if applicable) are stranded around the central strength member to form a compact and circular cable core, with gaps filled with water-blocking material. A plastic-coated aluminum tape (APL) is longitudinally applied before extruding an inner polyethylene (PE) sheath. A layer of single fine round steel wire armor is then applied, and an outermost PE sheath is extruded to complete the cable.
Purchase link
- Product Features

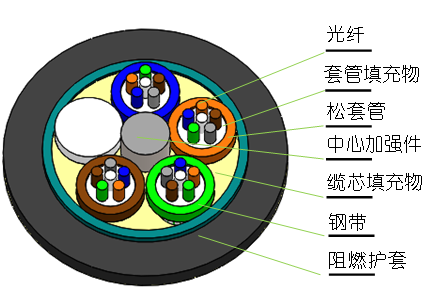

- Optical Cable Structure Diagram
- Product Standards
Excellent mechanical and thermal properties
Single fine round steel wire armor enhances tensile strength
High hydrolysis resistance and strength of the loose tube material
Specialized filling compound provides critical fiber protection
Outstanding crush resistance and flexibility
Waterproof performance ensured through:
· Single steel wire central strength member
· Special water-blocking compound in loose tubes
· Fully filled cable core
· Plastic-coated aluminum tape (APL) moisture barrier
· Effective water-blocking materials preventing longitudinal water penetration

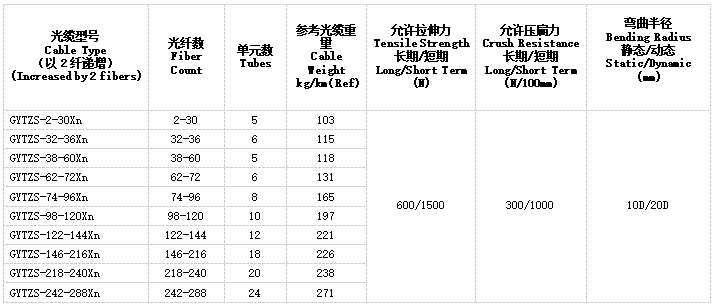

Structural Parameters

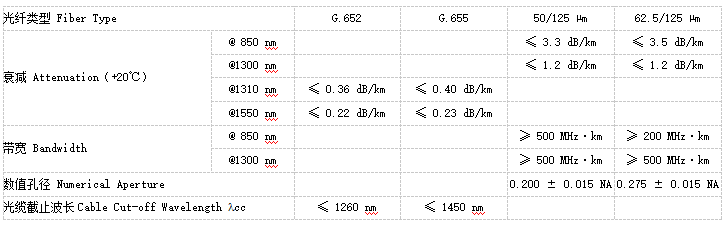

Optical Characteristics
Application: Duct, Aerial, Direct Burial
Storage/Operating Temperature: -40℃ to +70℃
Yuefei Optoelectronics'''' GYTZS optical cable complies with YD/T 901 and IEC 60794-1 standards.
