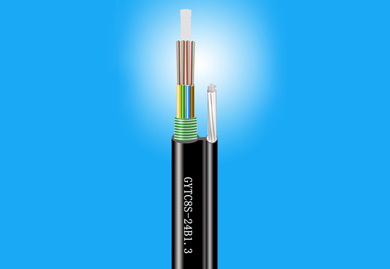

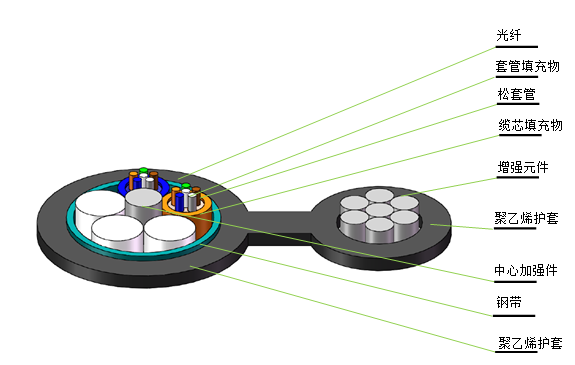

Structure of GYTC8S optical cable: 250μm fibers are inserted into high-modulus loose tubes (filled with water-blocking compound). A metallic strength member is at the cable core center (PE extrusion over it for certain fiber counts). Loose tubes (and filling ropes) are stranded around the central strength member to form a compact circular core (gaps filled with water-blocking material). After longitudinal wrapping with double-sided plastic-coated steel tape (PSP), it is integrated with steel wire strands into a figure-8 polyethylene sheath.
Purchase link
- Product Features
- Optical Cable Structure Diagram
- Product Standards
1.Extremely high tensile strength, facilitating self-supporting aerial installation and reducing installation costs
2.Excellent mechanical properties and temperature characteristics
3.Loose tube material itself has good hydrolysis resistance and high strength
4.Special grease filled in tubes, providing critical protection for optical fibers
5.The following measures ensure the cable''''s water resistance:
Special water-blocking compound filled in loose tubes
Complete cable core filling
Double-sided plastic-coated steel tape (PSP) enhancing moisture resistance
Structural parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYTC8S-2-30Xn | 2-30 | 5 | 162 | 3000/6000 | 300/1000 | 10D/20D |
GYTC8S-32-36Xn | 32-36 | 6 | 174 | |||
GYTC8S-38-60Xn | 38-60 | 5 | 176 | |||
GYTC8S-62-72Xn | 62-72 | 6 | 195 | |||
GYTC8S-74-96Xn | 74-96 | 8 | 215 | |||
GYTC8S-98-120Xn | 98-120 | 10 | 239 | |||
GYTC8S-122-144Xn | 122-144 | 12 | 268 |
Optical characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Suitable for: Self-supporting aerial installation
Storage and operating temperature: -40℃ to +70℃
Leafei Optic Technology Co., Ltd. GYTC8S optical cable complies with YD/T 1155 and IEC 60794-1 standards.
