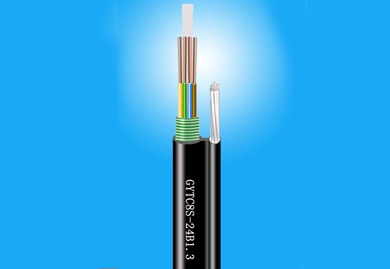

The GYTC8S optical cable structure involves placing 250μm optical fibers into loose tubes made of high-modulus material, with the tubes filled with waterproof compound. The core''''s center is a metallic strength member, which for certain fiber counts is additionally coated with an extruded layer of polyethylene (PE). The loose tubes (and filler rods) are stranded around the central strength member to form a compact circular core, with interstices filled with water-blocking material. A longitudinally applied double-sided plastic-coated steel tape (PSP) is integrated with a steel wire strand into a figure-8 polyethylene sheath.
Purchase link
- Product Features

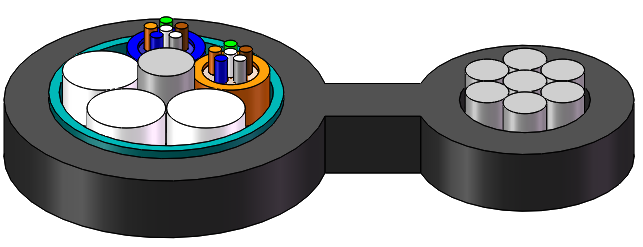

- Optical Cable Structure Diagram
- Product Standards
1. The steel wire strand provides extremely high tensile strength, facilitating self-supporting aerial installation and reducing deployment costs.
2. Excellent mechanical and temperature characteristics.
3. High hydrolysis resistance and superior strength of the loose tube material.
4. Critical fiber protection provided by specialized thixotropic gel filling.
5. The following measures ensure water resistance:
?· Loose tubes filled with specialized waterproof compound
?· Complete cable core filling
?· Double-sided plastic-coated steel tape (PSP) enhances moisture penetration resistance
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GYTC8S-2-30Xn | 2-30 | 5 | 162 | 3000/6000 | 300/1000 | 10D/20D |
GYTC8S-32-36Xn | 32-36 | 6 | 174 | |||
GYTC8S-38-60Xn | 38-60 | 5 | 176 | |||
GYTC8S-62-72Xn | 62-72 | 6 | 195 | |||
GYTC8S-74-96Xn | 74-96 | 8 | 215 | |||
GYTC8S-98-120Xn | 98-120 | 10 | 239 | |||
GYTC8S-122-144Xn | 122-144 | 12 | 268 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Self-Supporting Aerial
Storage and Operating Temperature: -40℃ to +70℃
The GYTC8S optical cable from LeFei Optoelectronic Co., Ltd. complies with YD/T 1155 and IEC 60794-1 standards.
