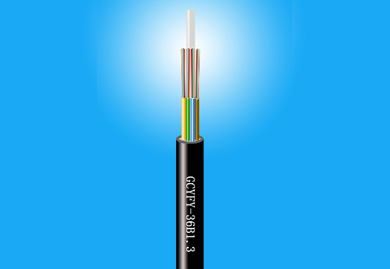

The GCYFY micro cable structure involves placing single-mode or multimode fibers into loose tubes made of high-modulus polyester material, with the tubes filled with waterproof compound. The cable core centers on a non-metallic strength member (FRP), which for certain fiber counts is additionally coated with an extruded layer of polyethylene (PE). The tubes (and filler rods) are stranded around the central strength member to form a compact circular core, with interstices filled with water-blocking material, and finally extruded with an outer polyethylene jacket to complete the cable.
Purchase link
- Product Features

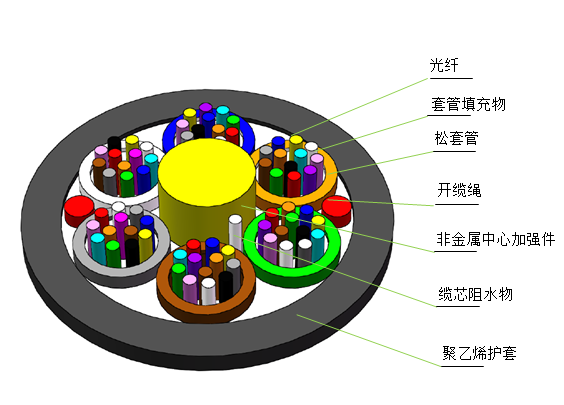

- Optical Cable Structure Diagram
- Product Standards
1. Small diameter, light weight, and moderate stiffness, suitable for blown installation.
2. High fiber density, maximizing duct space utilization.
3. Blowing speed of micro cable reaches 30-70 meters/minute, with a single blowing distance up to 1200 meters, ensuring high installation efficiency.
4. Allows incremental cable deployment as traffic grows, enabling phased investment and reducing initial costs.
5. Micro cables can be blown out for future replacement with advanced fiber types, maintaining technological leadership.
6. Ideal for construction in congested metro duct networks, avoiding destructive excavation and eliminating high costs associated with right-of-way acquisition.
7. Suitable for backbone, metro, and access network applications.
Structural Parameters
光缆型号 Cable Type （以2纤递增） (Increased by 2 fibers) | 光纤数 Fiber Count | 单元数 Tubes | 参考光缆重量 Cable Weight kg/km（Ref） | 允许拉伸力 Tensile Strength 长期/短期 Long/Short Term (N) | 允许压扁力 Crush Resistance 长期/短期 Long/Short Term (N/100mm) | 弯曲半径 Bending Radius 静态/动态 Static/Dynamic (mm) |
GCYFY-12-72Xn | 12-72 | 6 | 23 | 35/115 | 150/450 | 10D/20D |
GCYFY-74-96Xn | 74-96 | 8 | 32 | |||
GCYFY-98-120Xn | 98-120 | 10 | 42 | 60/210 | ||
GCYFY-122-144Xn | 122-144 | 12 | 52 | 80/240 |
Optical Characteristics
光纤类型 Fiber Type | G.652 | G.655 | 50/125 μm | 62.5/125 μm | |
衰减 Attenuation（+20℃） | @ 850 nm | ≤ 3.3 dB/km | ≤ 3.5 dB/km | ||
@1300 nm | ≤ 1.2 dB/km | ≤ 1.2 dB/km | |||
@1310 nm | ≤ 0.36 dB/km | ≤ 0.40 dB/km | |||
@1550 nm | ≤ 0.22 dB/km | ≤ 0.23 dB/km | |||
带宽 Bandwidth | @ 850 nm | ≥ 500 MHz·km | ≥ 200 MHz·km | ||
@1300 nm | ≥ 500 MHz·km | ≥ 500 MHz·km | |||
数值孔径 Numerical Aperture | 0.200 ± 0.015 NA | 0.275 ± 0.015 NA | |||
光缆截止波长Cable Cut-off Wavelength lcc | ≤ 1260 nm | ≤ 1450 nm | |||
Application: Blown Installation
Storage and Operating Temperature: -40℃ to +70℃
The GCYFY optical cable from LeFei Optoelectronic Co., Ltd. complies with YD/T 1460.4 and IEC 60794-1 standards.
